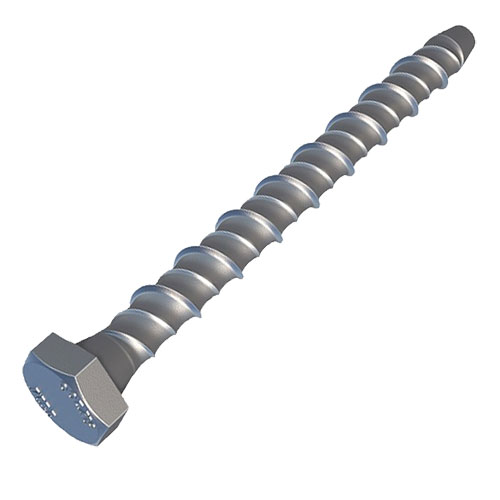

TIMco Multi-Fix Bolt Hex Head

Calculating latest stock


Product Overview

  • TIMco Multi-Fix bolt is a heavy duty non-expansion anchor.


    Read more



    That has a unique patented concave thread design which taps its own thread and provides rapid, low torque installation with exceptional pull-out resistance.

    It allows the user to adjust or remove the bolt ensuring a secure and accurate installation.

    This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as through bolts, shield, sleeve and drop in anchors.



    Code

    		 Fixing

    Diameter

    		 Fixing

    Length

    		 Head

    Type

    		 Max. Fixture

    Thickness

    		 Drill Bit

    Size

    		 Min. Drill

    Depth

    		 Hex

    Socket

    25400

    6mm

    50mm

    Hex Flange

    20mm

    6mm

    30mm

    10mm

    25401

    6mm

    75mm

    Hex Flange

    45mm

    6mm

    30mm

    10mm

    25402

    6mm

    100mm

    Hex Flange

    55mm

    6mm

    45mm

    10mm

    25403

    6mm

    130mm

    Hex Flange

    85mm

    6mm

    45mm

    10mm

    25404

    6mm

    150mm

    Hex Flange

    105mm

    6mm

    45mm

    10mm

    25405

    8mm

    60mm

    Hex

    20mm

    8mm

    40mm

    15mm

    25406

    8mm

    75mm

    Hex

    35mm

    8mm

    40mm

    15mm

    25407

    8mm

    100mm

    Hex

    60mm

    8mm

    40mm

    15mm

    25408

    8mm

    130mm

    Hex

    90mm

    8mm

    40mm

    15mm

    25409

    8mm

    150mm

    Hex

    110mm

    8mm

    40mm

    15mm

    25410

    10mm

    60mm

    Hex

    10mm

    10mm

    50mm

    17mm

    25411

    10mm

    75mm

    Hex

    25mm

    10mm

    50mm

    17mm

    25412

    10mm

    100mm

    Hex

    50mm

    10mm

    50mm

    17mm

    25413

    10mm

    130mm

    Hex

    80mm

    10mm

    50mm

    17mm

    25414

    10mm

    150mm

    Hex

    100mm

    10mm

    50mm

    17mm

    25415

    12mm

    75mm

    Hex

    15mm

    12mm

    60mm

    19mm

    25416

    12mm

    100mm

    Hex

    40mm

    12mm

    60mm

    19mm

    25417

    12mm

    130mm

    Hex

    70mm

    12mm

    60mm

    19mm

    25418

    12mm

    150mm

    Hex

    90mm

    12mm

    60mm

    19mm

    25419

    12mm

    200mm

    Hex

    140mm

    12mm

    60mm

    19mm
