Spit FIX 3 Through Bolt Wedge Anchor – ETA Option 7

Calculating latest stock


Product Overview

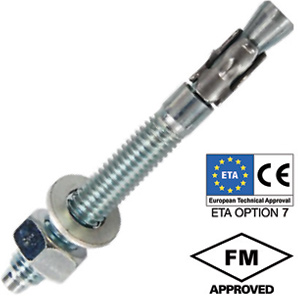

  • Zinc Plated Steel Wedge Anchor with European Technical Approval option 7 for non-cracked concrete.

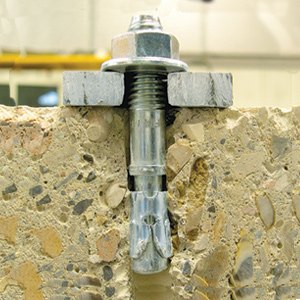

    Fast installation through fixing for concrete and solid stone. The chamfered head protects the threads when the anchor is tapped into the fixing hole using a hammer. Features an anti rotation expansion sleeve. Also available in hot dipped galvanised and stainless steel.

    Perfect for stadium seating, brick ties, industrial doors & gates, steel & timber framework and pallet racking.



    Code

    Thread Diameter

    Anchor Length

    Max. Fixture Thickness

    Drill Bit Size

    Min. Drill Depth

    Hex

    Socket

    25914

    M8

    55mm

    5mm

    8mm

    50mm

    13mm

    25916

    M8

    90mm

    40mm

    8mm

    50mm

    13mm

    25917

    M8

    130mm

    80mm

    8mm

    50mm

    13mm

    25919

    M10

    65mm

    5mm

    10mm

    60mm

    17mm

    25921

    M10

    75mm

    15mm

    10mm

    60mm

    17mm

    25923

    M10

    95mm

    36mm

    10mm

    60mm

    17mm

    25924

    M10

    125mm

    65mm

    10mm

    60mm

    17mm

    25925

    M12

    80mm

    5mm

    12mm

    75mm

    19mm

    25926

    M12

    100mm

    25mm

    12mm

    75mm

    19mm

    25928

    M12

    140mm

    65mm

    12mm

    75mm

    19mm

    25930

    M12

    160mm

    85mm

    12mm

    75mm

    19mm

    25931

    M12

    180mm

    105mm

    12mm

    75mm

    19mm

    25932

    M12

    220mm

    145mm

    12mm

    75mm

    19mm

    25933

    M16

    100mm

    5mm

    16mm

    95mm

    24mm

    25934

    M16

    125mm

    30mm

    16mm

    95mm

    24mm

    25935

    M16

    170mm

    75mm

    16mm

    95mm

    24mm

    25936

    M20

    120mm

    10mm

    20mm

    110mm

    30mm

    25937

    M20

    160mm

    50mm

    20mm

    110mm

    30mm
