Nylon Frame Fixing Countersunk

Sorry, this product has been discontinued
Calculating latest stock


Product Overview

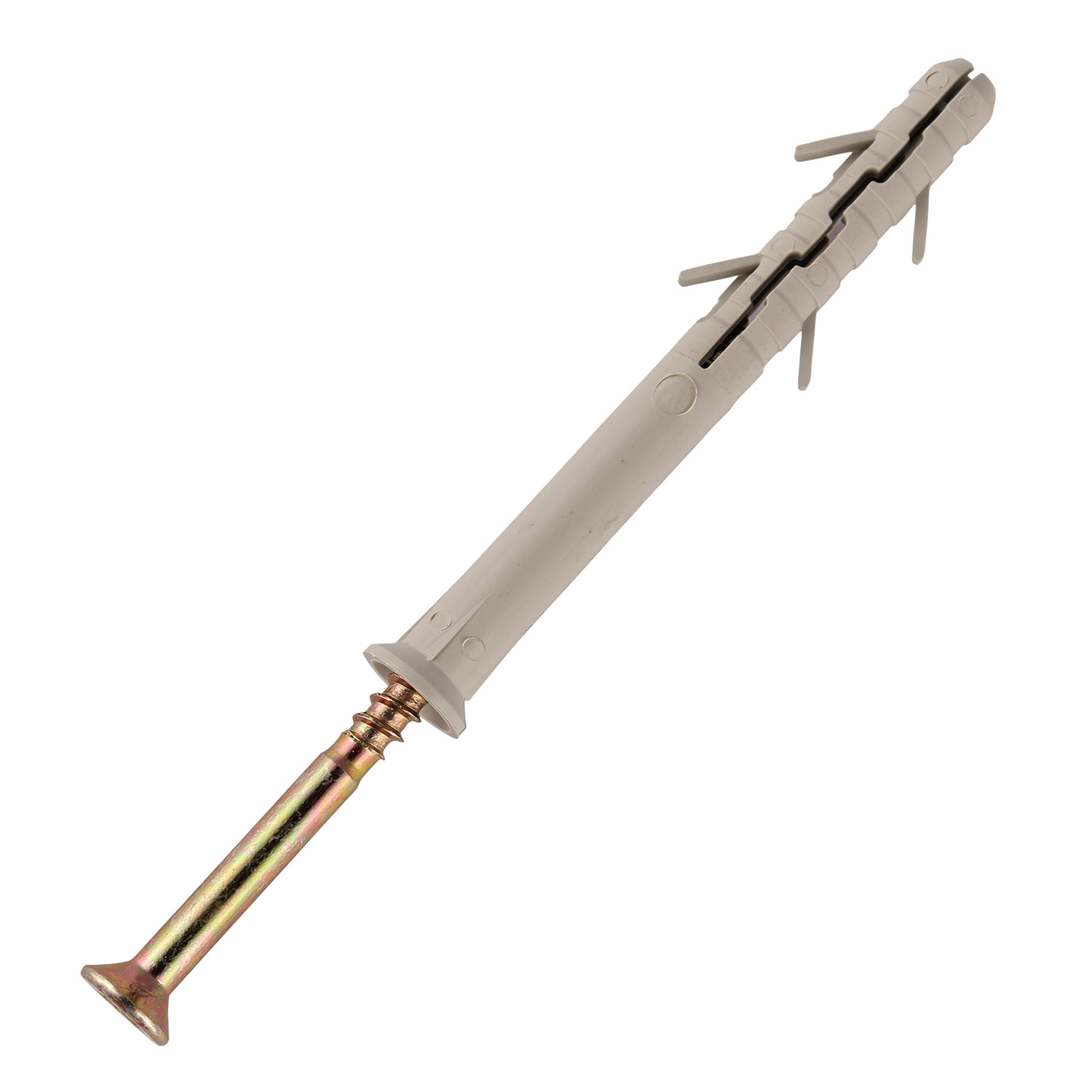

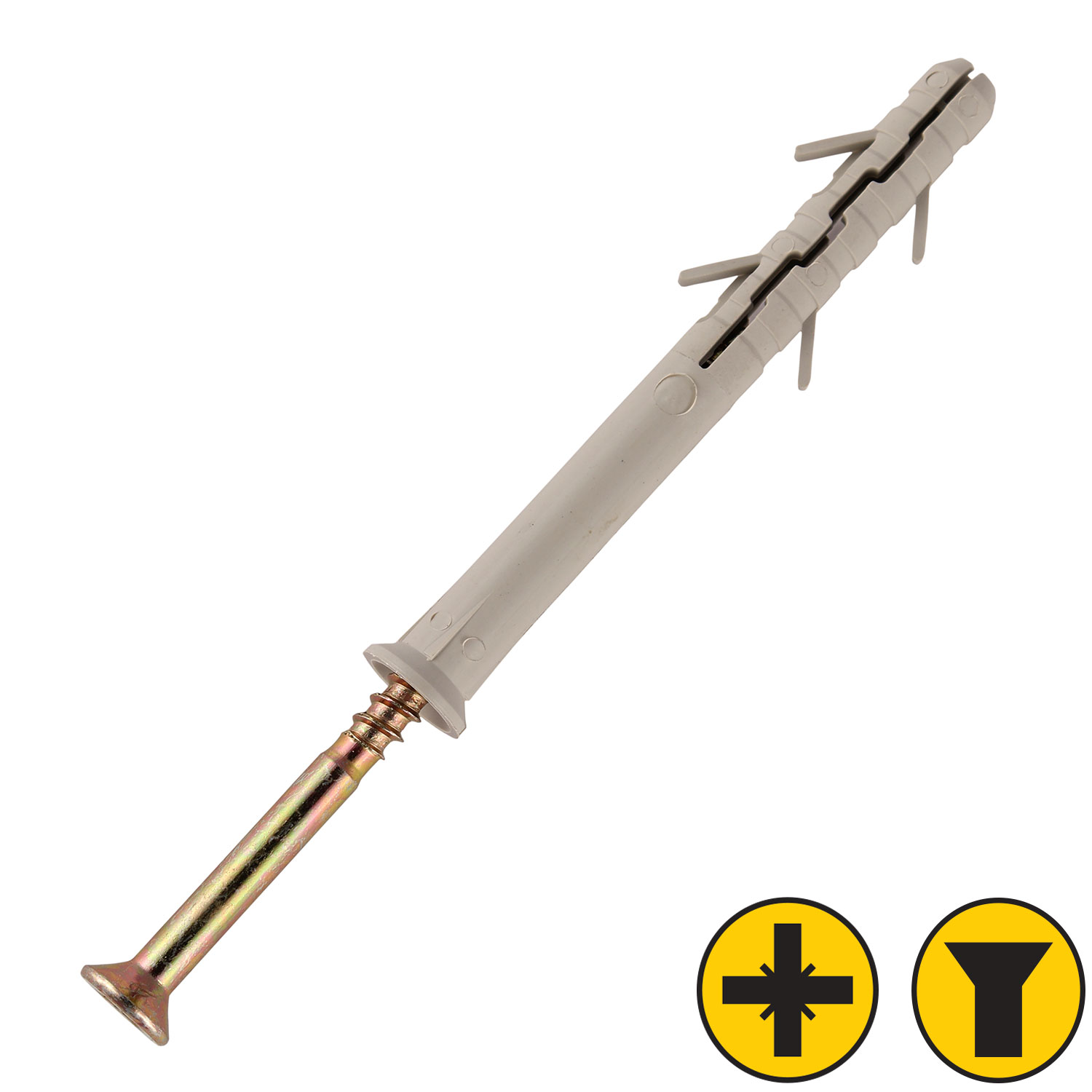

  • High quality Nylon Framing Fixings, used for the attachment of timber frames, windows and similar wood products.


    Read more

    Versatile fixing which can be used in concrete, brick, some aerated and hollow block. Anti-rotation barbs prevent the anchor from turning in the hole and through fixing speeds up installation.

    Zinc plated and yellow passivated. Anti-rotation lugs to prevent the fixing from turning during installation.

    Use for fixing door and window frames, sole plates and battens.



    Code

    Anchor Size

    Max. Fixture Thickness

    Drill Bit Size

    Min. Drill Depth

    Bit Type

    25001

    8 x 80mm

    40mm

    8mm

    95mm

    PZ3

    25002

    8 x 100mm

    60mm

    8mm

    115mm

    PZ3

    25223

    10 x 80mm

    30mm

    10mm

    95mm

    PZ3

    25225

    10 x 100mm

    50mm

    10mm

    115mm

    PZ3

    25227

    10 x 120mm

    70mm

    10mm

    135mm

    PZ3

    25229

    10 x 140mm

    90mm

    10mm

    155mm

    PZ3

    25231

    10 x 160mm

    110mm

    10mm

    175mm

    PZ3
