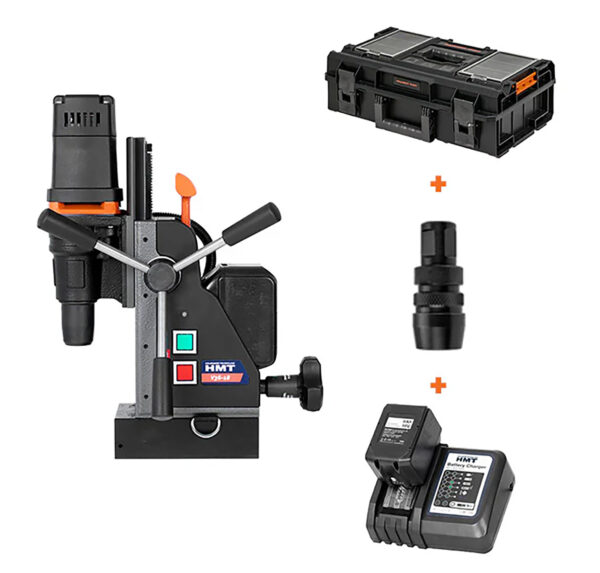

The HMT V36 is a high performance, low-maintenance industrial quality portable magnetic drill with a broaching capacity from 12mm up to 36mm diameter. It delivers exceptional performance in the most challenging of drill environments and fabrication conditions. The V36 is extremely light weight and its high drilling speed makes it the ideal machine when hole cutting with TCT cutters up to 36mm diameter and 110mm long. With its stroke of 140mm it will also accept a wide range of VersaDrive tooling such as TurboTip drill bits, Twist drills, countersink, drill sinks, step drills and many others. Comes complete with 2 x 9 ah Batteries and a Charger making it an ideal site solution due to its cordless design, so not site power required with trailing power cables.
The VersaDrive installation kit gives a bestselling selection of cutting tools for overcoming installation and maintenance challenges. Includes the bestselling sizes of Impact Reamers, ImpactaTaps, TurboTip Impact Drillbits, CarbideMax TCT Holesaws, and 5 modular adapters all in a STAKIT Mid Case..
The wheeled site cart gives additional storage space for further tooling. All items clip together securely for safe and efficient transportation around the work area.
Drill Features:
With its powerful 1000-watt motor and high-speed gearbox, the V36 is perfectly optimised for broaching with structural size CarbideMax TCT cutters from 12-36mm.
The Versadrive V36 also has an exceptional long stroke when compared with other machines in its class, capable of taking cutters up to 110mm long.
The V36 is capable of drilling 49 x 18mm holes per charge (10mm plate). It is also supplied in a robust plastic Versadrive STAKIT tool case to help protect the machine. It incorporates seamlessly into the Versadrive STAKIT system for easy transportation for use on site or in the workshop.
Installation Kit Features:
The STAKIT Site Installation Kit combines an essential set of best-selling VersaDrive products to overcome all common site installation and steel erection holemaking challenges. Keeps the job moving when you find an unexpected challenge. Presented in the STAKIT Mid Case and connects to all Top cases and Base cases. Metric…
Drill Specification:
Annular Hole Cutters: 12 – 36mm TCT
Maximum Cutter length: 110mm
Twist Drill Range: 1 – 13mm
Length: 325mm
Width: 184mm
Height Adjustable: 275-415mm
Stroke: 140 mm
Magnet dimensions (L X W) 157 x 85mm
Magnetic Force: 650 kgs
Motor Power: 1000 W
No load speed: 530 RPM
Arbor 19,05 mm (¾”) Weldon
Weight: 9.8kg
Battery Capacity: 18V 9ah Li-ion
Included as Standard: Handles, Heavy Duty Metal Guard System, VersaDrive Rapid-Lock Weldon Adapter, Stakit 200 Site Case.
Installation Kit Contents:
6 x TurboTips 6, 6.35, 8, 10.5, 12, 14mm
5 x HoleCutters 14, 17, 18, 20 & 22mm
2 x ImpactaStep 16 & 22mm
3 x DrillTaps M6, M8 & M10
3 x ImpactaTaps M12, M16 & M20
4 x Reamers 12, 14, 18 & 22mm
1/4" Impact Driver Adapter
1/2" Impact Wrench Adapter
Magnet Drill Adapter
130mm Extension
300mm Extension
5 x HoleCutters 14, 17, 18, 20 & 22mm
2 x ImpactaStep 16 & 22mm
3 x DrillTaps M6, M8 & M10
3 x ImpactaTaps M12, M16 & M20
4 x Reamers 12, 14, 18 & 22mm
1/4" Impact Driver Adapter
1/2" Impact Wrench Adapter
Magnet Drill Adapter
130mm Extension
300mm Extension
1 Year Warranty.
